EZFL72

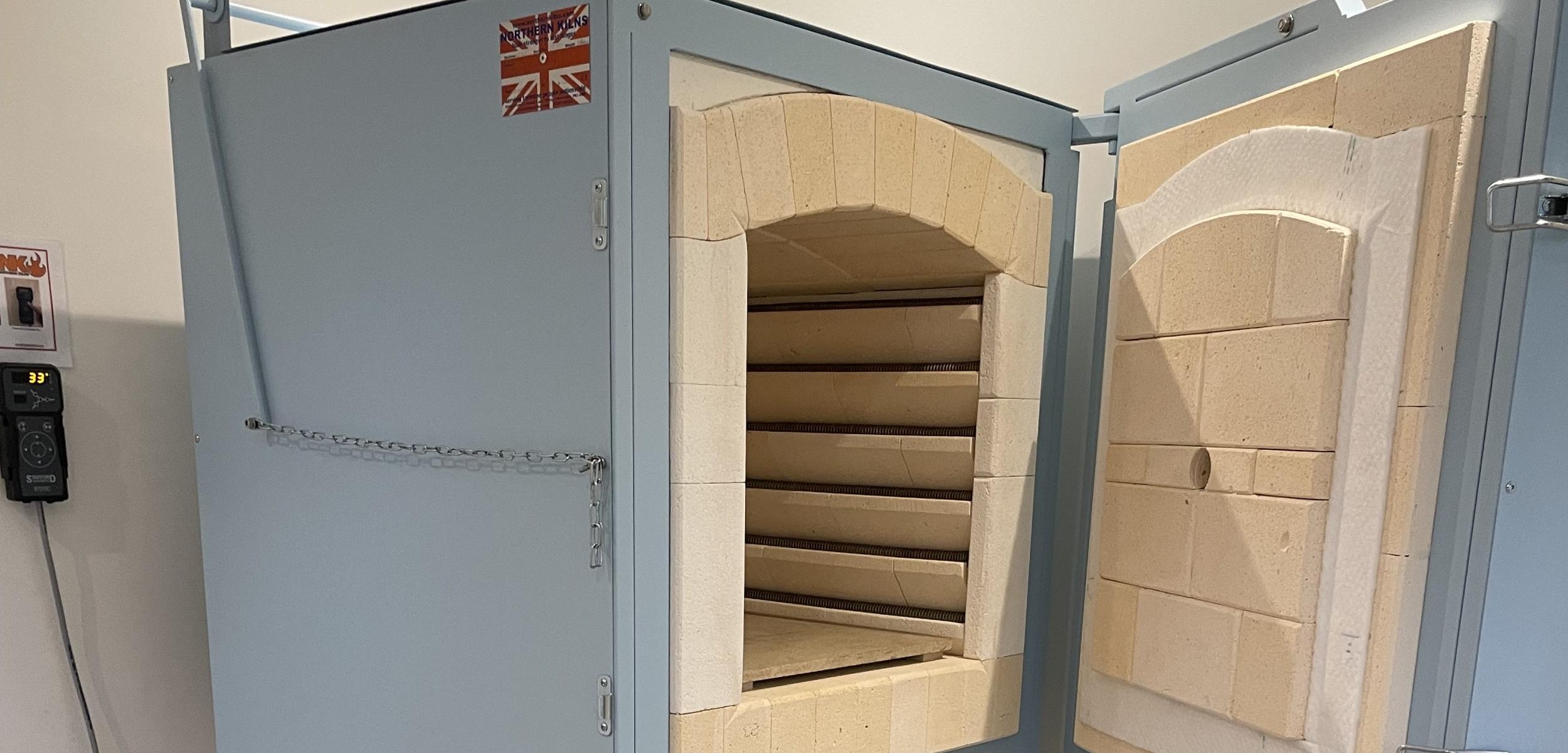

Substantial front-loading kiln lined with light weight brick, designed to perform consistently and efficiently whilst withstanding the test of time.
From £4,896 + delivery (inc VAT)
Technical Data
Volume | 72 litres, 2.5 cu. Ft. |
Internal dimensions | 13.5” x 18” x 18” or 343mm x 458mm x 458mm (W x D x H) |
External dimensions | 28.5” x 39.5” x 68” or 724mm x 1004mm 1728mm (W x D x H) |
Power | 6kW, 26amps |
Controller | ST215 |
Furniture set | 8 x 77mm props 4 x 127mm props 4 x 178mm props 4 x 229mm props 8 x 26mm castellated props 8 x 39mm castellated props 4 x shelves measuring 317mm x 432mm 1 tub of batt wash |
Max temp | 1300°C |
Weight | 280 kgs |
Bisc fire cost | £6.20 |
Glaze fire cost | £7.70 |
Warranty | 2 years |
Optional extras:
Multi zone control
Auto damper
Truck base
Wifi controller
Features
Fully adjustable top damper to aid venting and cooling
150mm insulation with added 25mm air gap all round for maximum efficiency
25mm twin side vents to aid cooling
Silent switching via solid state relays
Fully ventilated electrical box and element void to keep components cool
20mm steel hinge pins preventing door sag
Arched ceiling with added insulation to increase efficiency
Industrial grade elements fitted to two sides and base
Supa single groove pattern offering greater element life.
Hand finished 6mm thick framework for longevity1350°C low thermal mass brick work, a premium brick giving a great economy.
Door switch electrical isolation for safety
Double rated switchgear for trouble free performance.
Primary and safety circuits for peace of mind.
Choice of RAL colour
The door hinged left or right as required
